Controller and cabeling
Outdoor light is on fuse F19. There is a separate RCD in front of the main power distribution box above the demo shelf.

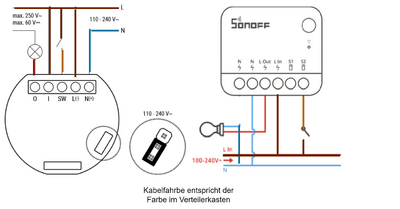

Connection of Shellies and Zigbee Switch:

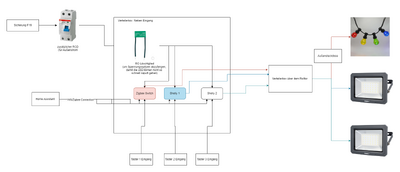

Wiring Overview:
File:Outdoorlightning_Wiring_V1.drawio

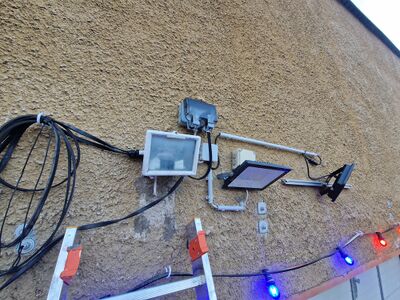

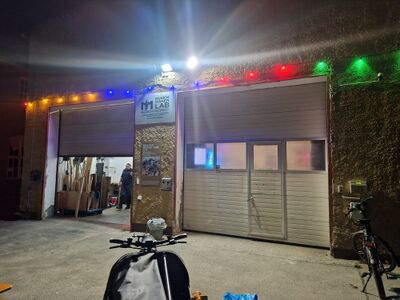

Outdoor Result
Please note: The left white flood light is an old one. In theory it should still work and is directly connected to an own fuse.

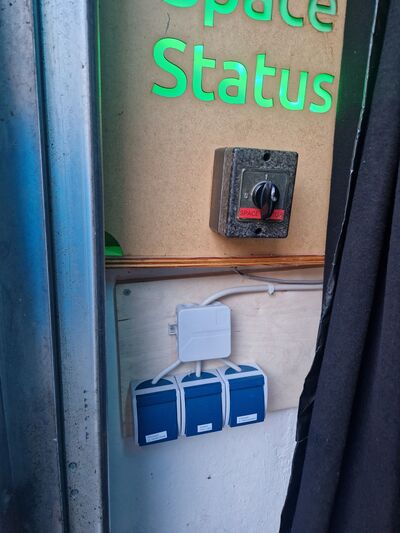

Switches

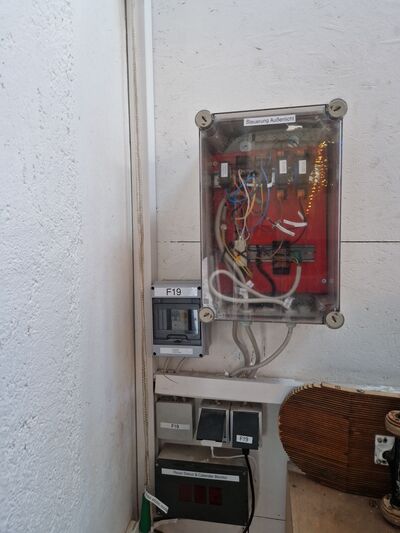

Main distribution box
Please note: We added a RC-Glied to the power line of the outdoor lighting, because so many red light bulbs died. We assumed some peaks on the power line might destroy the circuits of the light bulbs. But it's not really clear, if it's the quality of the red light bulbs or the peak son the power line at the end.

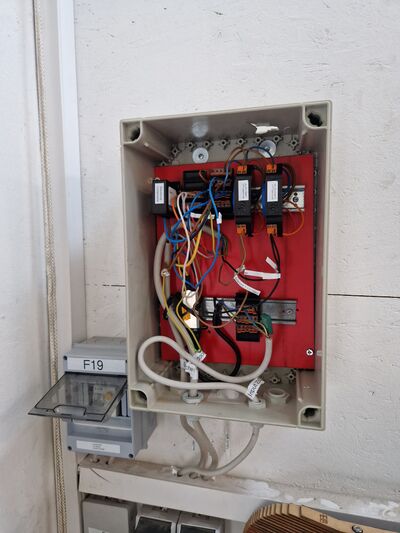

Secondary distribution box

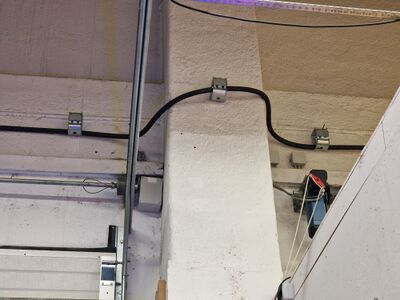

Distribution box for the connection to the outdoor ligting
Outdoor Flood Lights
There are two flood lights in the yard. These are controlled individually by Shelly Modules (Shelly 1 V3)
Check IPs on Network.
wh-floodlight1: Flood light in front of the lab
wh-floodlight2: In front of the Alte Feuerwehr
Access: The username and password are 'makerman'.
Both are integrated into home assistant
Outdoor Colorful Fairy Lights
- IP67 waterproof 230V fairy light.
- stable even in the winter
- easy to maintain
- dimmable lights
- bought from LumenXL

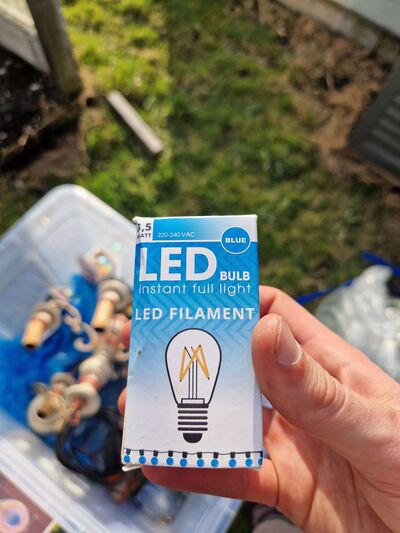

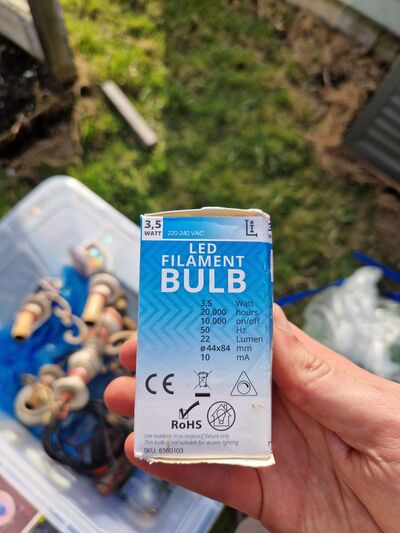

- replacement bulbs available at the kitchen storage together with the other light bulbs

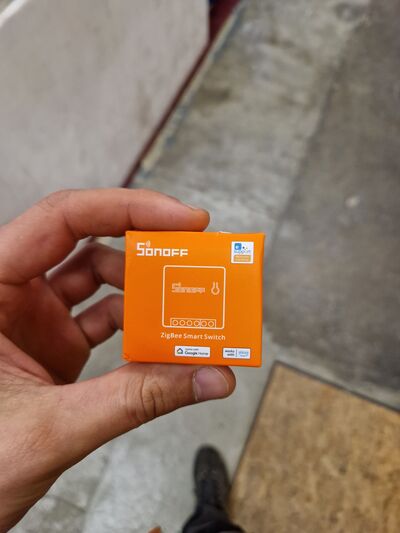

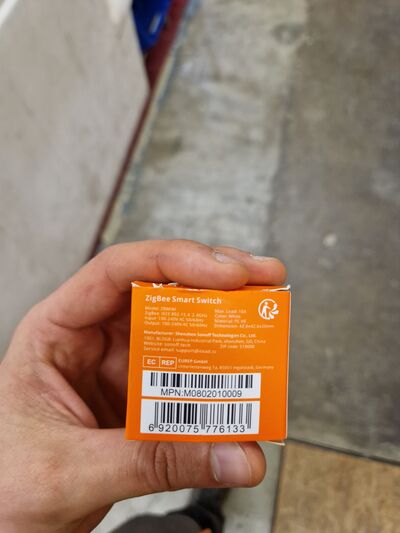

- controlled by Zigbee Switch: SONOFF ZBMINI ZigBee DIY Smart Switch or SONOFF ZBMINIR2 Zigbee; Integrated into home assisstant
Colorful Makerlab sign
Our sign at the wall is just a flat white acryl glas with some printing on it. This could be much fancier with some background light. => This project needs someone who takes this project
Improvement Project 2025/2026
Nachbestellung der korrekten grünen LED sobald verfügbar + zusätzlicher Illu Verbinder für die finale Installation.
- Die aktuellen grünen LEDs sind schwächer und nicht dimmbar.
- Mit dem aktuellen Stecker geht die Außensteckdose nicht zu. Für den Sommer ok, aber für den Winter sollte es dann fertig gemacht werden.
Lieferbar wahrscheinlich erst im Oktober 2025
=> Geld schon hier mit beantragt: 20250629 Plenum
| Date | What | Link/Source | Details |
|---|---|---|---|
| 10.2025 | Illu Verbinder | https://www.lumenxl.de/wasserfester-verbinder-fuer-die-illu-lichterketten.html | 7€ |
| 10.2025 | 3 Grüne LED | https://www.lumenxl.de/search/Lichterkette+Gl%C3%BChbirne+farbig%2C+Filament+LED%2C+dimmb/ | 3*2,65€ + Versand |
| 10.2025 | 4 Red LED | https://www.lumenxl.de/lichterkette-gluehbirne-filament-rot-dimmbar.html | 5* 2,65€
(3 are already broken, one as replacement) |
Flood Light Upgrade (manual mode)
=> only idea for later to have physical switches on the wall to be able to control the outdoor light besides home assistant
| Date | What | Link/Source | Details |
|---|---|---|---|
| 09.2025 | 2 x Taster für Außenstrom | https://www.amazon.de/fontana-Doppel-Taster-grau-250V-IP44/dp/B0113G8EMA | Steuert Zigbee bzw. Shellies an |
| 09.2025 | NYM-J 3x1,5 mm oder 2,5mm | ||
| 2. Außenstrahler | Baumarkt |
Plenum approvals:
20251211 Plenum: Switches and Cable
20251113 Plenum: New Zigbee swtich
20250629 Plenum: General stuff
Tasks
| TODO | Status |
|---|---|
| Check how the current lightning is wired and if is space to add more | done |
| Plan material | done |
| Request money in plenum | done |
| Order stuff | done |
| Mount fairy light | done |
| Mount outdoor socket | done |
| Re-order missing stuff (LED and connector) | done |
| Print holder for Zigbee and Shelly and wago
https://www.printables.com/model/1088220-sonoff-zbmini-r2-din-mount?lang=de https://www.printables.com/model/804517-shelly-1-1pm-din-rail-mount-for-wago-221 |
done |
| Install Taster Switches | done |
| Cable everything | done |
| Add second flood light | done |
| Document details (e.g. Dimmable etc.) | done |
| Finalize outdoor installation for winter (install new plug on the fairy light) | done |
