WiFi

  • SSID: "munichmakerlab" (supports 2.4 GHz and 5 GHz)
  • Security: WPA2 Personal. Preshared Key is on a sticker located on the mailbox at the workshop door.

Network Segments

Network Subnetmask Gateway DNS servers DHCP server VLAN Comment
SpaceNET 255.255.0.0 (/16) 10.10.0.1 10.10.0.10, 10.10.0.1 10.10.0.1 50 If you don't know what this is, this is the network you are using.
Mgmt LAN 255.255.255.0 (/24) 10.11.1.1 10.11.1.1 10.11.1.1 none (administrative purposes)
SpaceVPN 255.255.255.0 (/24) 10.11.2.1 10.11.2.1 10.11.2.1 none Restricted access to SpaceNET and Mgmt VLAN
PPPoE VLAN - - - - 3 (administrative purposes)
Reserved VLAN - - - - 2019 Do not use
Reserved VLAN - - - - 2020 Do not use
Reserved VLAN WB³ 255.255.254.0 (/23) 10.11.12.1 10.11.12.1 10.11.12.1 2012 Do not use

SpaceNET: IP Address Space

  • Space-Stuff (space owned or used stuff): 10.10.20.0 - 10.10.20.100
  • User-Stuff static IP: 10.10.20.101 - 10.10.20.254
  • User-DHCP: 10.10.10.20 - 10.10.11.250 (lease time 1 week)

SpaceNET: Getting a fixed IP address

If you need a fixed IP address, choose one that's not taken in the appropriate range and enter it in the table below. Usually there are groups of IPs (3D printers, ...) so try to fit your device in one of the groups.

SpaceNET: Allocated IP Addresses

IP Address Name Description
10.10.0.1 Router Router
10.10.0.10 ns1 DNS server (running on the docker01 host)
10.10.10.20-10.10.11.250 DO NOT USE DHCP Range
10.10.10.51 Shelly wh-floodlight1 Floodlights => might be outdated (in DHCP range)
10.10.10.53 Shelly wh-floodlight2 Floodlights => might be outdated (in DHCP range)
10.10.20.10 NyanPrint Color Laser Printer / Drucker Kyocera FS-C8020MFP
10.10.20.28 Ultimaker Ultimaker "Ulrich" Unlimited Z
10.10.20.29 Koukaam Netio-230A Spannungsverteilungsgerät
10.10.20.30 Led panel LED Panel
10.10.20.40 heimdal Door Lock RPi
10.10.20.43 zuko-ng
10.10.20.44 zuko
10.10.20.45 rusa Prusa Mini 1 Prusa Mini
10.10.20.46 lusa Prusa Mini 2 Prusa Mini
10.10.20.66 vulpix Proxmox Local Server
10.10.20.67 zapdos Homeassistant installation
10.10.20.75 rotom MuMaDisplay
10.10.20.80 Lasercutter LaserCutter
10.10.20.81 LaserPC LaserCutter
10.10.20.85 LaserCutPC OLD (temp) LaserCutter
10.10.20.82 cutmysignintopieces Plotter
10.10.20.90 MuMaShare MuMaShare
10.10.20.144 Wasserschaden Paul (bridge to the mesh)

SpaceNET: Dead Hosts

IP Address Name Description
10.10.20.11 NyanerPrint HP Color LaserJet cm2320fxi MFP
10.10.20.24 OctoPrint NEO 1 Neo1 http://neo1.local/
10.10.20.25 OctoPrint X400 x400
10.10.20.26 OctoPrint Zonestar Z5 Zonestar Z5
10.10.20.27 (duplicate) vertexdelta OctoPrint Vertex Delta
10.10.20.27 (duplicate) OctoPrint X350 X350 http://x350.local/
10.10.20.28 OctoPrint X400 X400 http://x400.local/
10.10.20.31 tokyo.local LED-Panel eth0
10.10.20.32 tokyo.local LED-Panel wlan0
10.10.20.42 strichliste strichliste backend on Chris' ProxMoxBox
10.10.20.66 docker01 Docker Host
10.10.20.67 docker01-old Old Docker Host while stuff is being migrated over
10.10.20.123 Paul's storage box raspi Paul
10.10.20.150 ewindow Virtual Machines
10.10.20.155 germanpi A very German Pi
10.10.20.200-210 MuMaMox Chris' ProxMoxBox
10.10.21.61 hawking Fileserver (deactivated)

IPv6

We got native IPv6 \o/

DNS

DNS is provided by a docker bind image (https://github.com/sameersbn/docker-bind).

  • Internal zone is "intern.munichmakerlab.de", not all hosts are in there yet
  • Server is maintained via Webmin at https://10.10.20.66:10000/

Hostnames

Should make sense.

Hardware

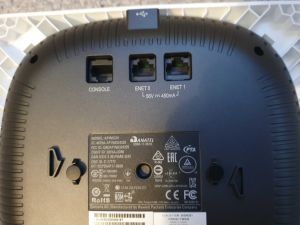

Currently rolling a Ubiquiti setup with USG, CloudKey, 24-Port US-24 Switch, UAC PRO access point and a AP-PRO access point for the "Feuerwehr" access (toilets). Infrastructure is centrally managed up to the access switch (ground level switches) which all terminate the MuMaLab Network unless stated otherwise.

Uplink

We are connected to the internet via a Telekom V-DSL connection. Speed is usually 100 mbit down, 40 up.

VPN

VPN is provided for administrative purposes, contact Severin or German for more information.
