Space Outdoor Lighting
| Space Outdoor Lightning Release status: beta [box doku] | |
|---|---|
| |
| Description | Improve the outdoor appearance of our space with colorful lightning |
| Author(s) | Milian, |
Idea
Improve our outdoor lightning of the space for events and parties.
Details
Electric infrastructure
todo document result
Flood Lights
todo: integrate: Floodlights

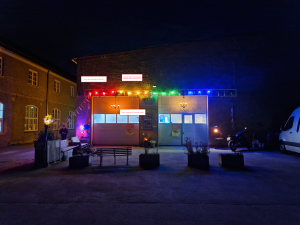

Fairy Lights and electric infrastructure
Idea:
- IP67 waterproof 230V fairy light.
- stable even in the winter
- easy to maintain
Stuff
Nachbestellung der korrekten grünen LED sobald verfügbar + zusätzlicher Illu Verbinder für die finale Installation.
- Die aktuellen grünen LEDs sind schwächer und nicht dimmbar.
- Mit dem aktuellen Stecker geht die Außensteckdose nicht zu. Für den Sommer ok, aber für den Winter sollte es dann fertig gemacht werden.
Lieferbar wahrscheinlich erst im Oktober 2025
=> Geld schon hier mit beantragt: 20250629 Plenum
| Date | What | Link/Source | Details |
|---|---|---|---|
| 10.2025 | Illu Verbinder | https://www.lumenxl.de/wasserfester-verbinder-fuer-die-illu-lichterketten.html | 7€ |
| 10.2025 | 3 Grüne LED | https://www.lumenxl.de/search/Lichterkette+Gl%C3%BChbirne+farbig%2C+Filament+LED%2C+dimmb/ | 3*2,65€ + Versand |
| 10.2025 | 4 Red LED | https://www.lumenxl.de/lichterkette-gluehbirne-filament-rot-dimmbar.html | 5* 2,65€
(3 are already broken, one as replacement) |
Flood Light Upgrade (manual mode)
=> only idea for later to have physical switches on the wall to be able to control the outdoor light besides home assistant
| Date | What | Link/Source | Details |
|---|---|---|---|
| 09.2025 | 2 x Taster für Außenstrom | https://www.amazon.de/fontana-Doppel-Taster-grau-250V-IP44/dp/B0113G8EMA | Steuert Zigbee bzw. Shellies an |
| 09.2025 | NYM-J 3x1,5 mm oder 2,5mm | ||
| 2. Außenstrahler | Baumarkt |
Plenum approvals:
20251211 Plenum: Switches and Cable
20251113 Plenum: New Zigbee swtich
20250629 Plenum: General stuff
Tasks
| TODO | Status |
|---|---|
| Check how the current lightning is wired and if is space to add more | in progress |
| Plan material | done |
| Request money in plenum | done |
| Order stuff | done |
| Mount fairy light | done |
| Mount outdoor socket | done |
| Re-order missing stuff (LED and connector) | in progress |
| Print holder for Zigbee and Shelly and wago
https://www.printables.com/model/1088220-sonoff-zbmini-r2-din-mount?lang=de https://www.printables.com/model/804517-shelly-1-1pm-din-rail-mount-for-wago-221 |
in progress |
| Install Taster Switches | in progress |
| Cable everything | in progress |
| Add second flood light | open |
| Document details (e.g. Dimmable etc.) | |
| Finalize outdoor installation for winter (install new plug on the fairy light) |
Specs
Zigbee Switch: SONOFF ZBMINI ZigBee DIY Smart Switch or SONOFF ZBMINIR2 Zigbee

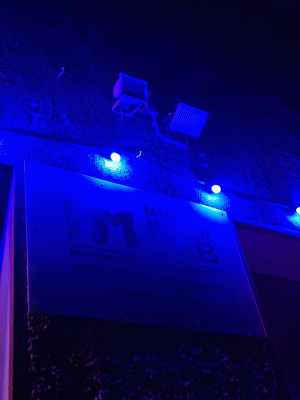

colorful Makerlab sign
Our sign at the wall is just a flat white acryl glas with some printing on it. This could be much fancier with some background light. => This project needs someone who takes this project
