Demo Shelf
The Demo Shelf of Things.
A shelf full of demo parts made in our lab combined with some nice lights and some small fun gimmicks.
| Demo Shelf Release status: beta [box doku] | |
|---|---|
| |
| Description | Beautify our demo shelf at the entrance with some LEDs and make it "living" again |
| Author(s) | Milian, Friedjof, |
Documentation
- Code for the controller, config and diagrams: https://github.com/munichmakerlab/demo-shelf
- Individual devices: Check Network "demoshelf xyz"
- Controlled by: Homeassistant
- Source Sounds: https://www.kirmes-soundboard.de/; Backup

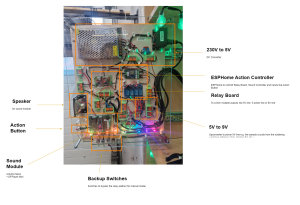

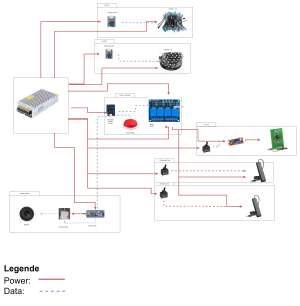

Circuit diagrams:

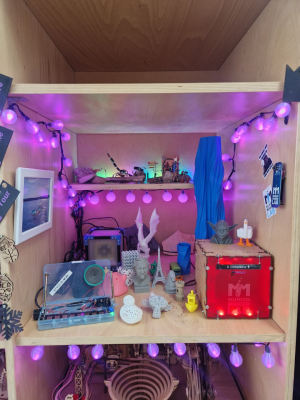

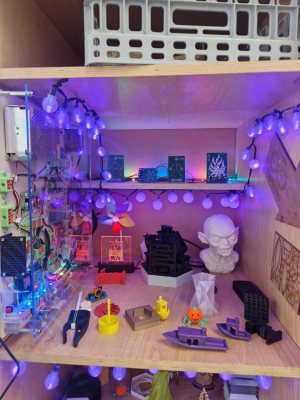

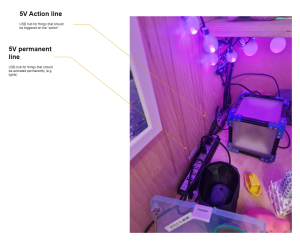

More photos
Idea
We have a shelf with 3D print and other demo projects. It got a bit messy over the time and it would be nice to make it cleaner and more beautiful so we can impress our visitors ;-)
Adrian and Chris started already to add the old touch PC to the shelf to control our home assistant devices.

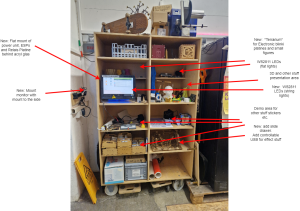

Plan is to add some control-able LED lights and control for other stuff in the shelf (3D Print marble run, digital cube etc.).
- two parts for 3D prints with LED lights
- one part "Terrarium" for small animals build out of electronical parts

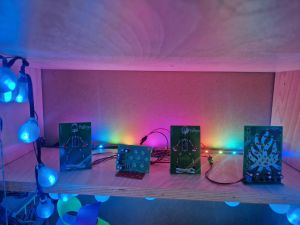

- one part for blinky LED circuits
- drawer: one part of moving stuff
- 3 x drawer for sticker and co.
Details
Multiple ESP Home + WLED + Relais for controlling on/off stuff + WS2811 stripes powered by 5V power supply.
The solution should be able to be controlled by Home Assistant, but will have also a manual mode (like switches for enabling/disabling the moving topics) etc.
More to come...

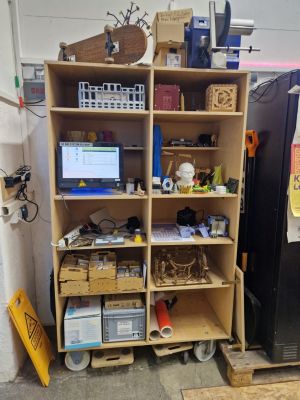

Old Shelf
Stuff
Tasks
| TODO | Status |
|---|---|
| measure the shelf | done |
| plan drawer | done |
| buy stuff | done |
| add pull out drwaer | done |
| upgrade donation cube | done |
| build stand for makerlab CNC acryl | done |
| build circuits | done |
| install fairy lights | done |
| test and program circuits | done |
| mount everything electronical | done |
| integrate into Home Assistant and optimize | done |
| document | done |
