Page to document the electrical distribution and fuses in the lab.

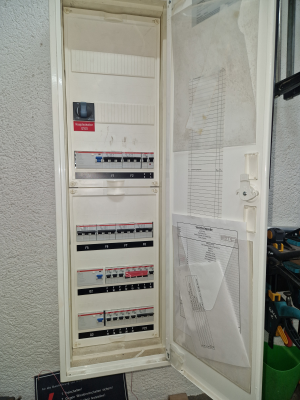

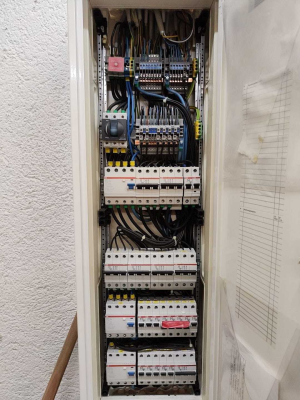

Fusebox
In the workshop
Fuses and sockets V4
Please note: The overview can always have mistakes! Always double check, that a powerline is actually safe!
Left and right is looking from the outside into the space through the rolling gates.
| Fuse | RCD | Phase | Sockets | Details |
|---|---|---|---|---|
| F1 | Q1 | ABC | Fan for the basement/lasercutter | 3-phase, Connected on the wall next to the lasercube with the pipe from the basement to the roof. |
| F2 | Q1 | ABC | Both rolling gates | 3-phase, rolling gates are connected via CCE connector |
| F3 | Q1 | A | Workshop I | sockets left and right next to the rolling gate, outdoor power outlet; next to door |
| F4 | Q1 | B | Living room | left wall |
| F5 | Q1 | ABC | heater front | 3-phase; near rolling gate |
| F6 | Q1 | ABC | heater back | 3-phase; in the back, electronic lab |
| F7 | Q1 | ABC | Workshop II - CEE power outlet workshop (left side) | 3-phase, distributor, CNC, grinder, drill press |
| F8 | Q1 | ABC | Lasercube I - CEE power outlet Lasercube (right side) | 3-phase; Laser, 3D Printer |
| F9 | Q2 | A | Outlets and light between Kitchen and electronics lab; Street lights | |
| F10 | Q2 | B | Electronic Lab | at the table |
| F11 | Q2 | C | Lasercube II | Wall sockets, lights, Grube Server sockets |
| F12 | Q2 | A | Shelly 3M Pro | For power measurement |
| F13 | Q2 | B | Shelly 3M Pro | For power measurement |
| F14 | Q2 | C | Shelly 3M Pro | For power measurement |
| F15 | Q2 | A | empty | |
| F16 | Q2 | B | space main lights | |
| F17 | Q3 | A | basement ("Grube") | between F17 and the basement is a RCD mounted next to the lasercube; Laser filter fan |
| F18 | Q3 | B | community area (right) | right wall with project boxes, member boxes in the middle, network rack at the wall |
| F19 | Q3 | C | community area (left), outdoor lighting | sockets on the wall between workshop and community area. Left side community area at the entrance is also a separate RCD box for the outdoor lighting. |
| F20 | Q3 | A | Old Outdoor lighting? | Old white outdoor light in the middle (not in use) |
| F21 | Q3 | B | Workshop sockets outer wall? (left in the back) | in the left corner |
| F22 | Q3 | ABC | Kitchen | 3-phase; next to the kitchen sink is a addtional 3-phase fuse + CEE conector + distributor for the whole kitchen |
| RCD | Fuse |
|---|---|
| Q1 | F1 - F8 |
| Q2 | F9 - F16 |
| Q3 | F17 - F22 |
Plan can be found at wiki.munichmakerlab.de/index.php?title=Electric_power

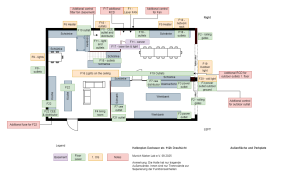

Plan
Source file: https://github.com/munichmakerlab/space-infrastructure/tree/main/space-plans
Power Measurement
Our electricity meter is located outside of the lab. There is a white door next to our rolling gates at the "Alte Feuerwehr" building part. The access is only possible via our landlord.
More details about the electriciy meter can be found in slack #infrastructure (Power measurement canvas)

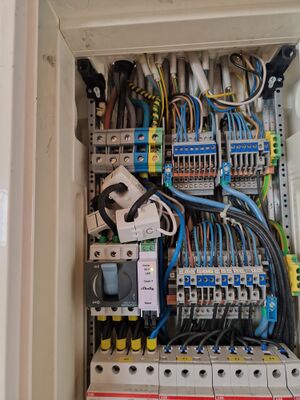

Shelly Pro 3EM Measurement device
Check Network for access to the Shelly device or check in home asstistant
The device measures the ampere on all three phases. The device itself is connected to three separate fuses for it's own power
Notes about issues and updates
07.2026: Shelly Pro 3M einbauen lassen
08.2026: F4 austauschen lassen. F4 löst immer wieder auf und es ist nicht ganz klar, ob es die Sicherung ist oder wirklich irgendein Gerät, weil es sich nicht nachvollziehen lässt.
