Sensors

This Wiki Page is a summary of different Sensors we have in the lab.

Scope: Measure different environment data and make them available via Statusboard or locally via LCD displays.



Lab Sensors Release status: beta [box doku]
Description	Indoor air quality, temperature and humidty measurement
Author(s)	Milian Original: German (& Severin)

Sensors

Name	Location	ID	IP	Details	Status
Sensor Wendy	Workshop (yellow housing)	2606363	10.10.20.31	SDS011 to measure the particulate BME280/BMP280 for the temperature/humidity OLED SSD1306 Software: sensor.community Data: send to tbd Case & Breakout Board: from HomeOfMaking Brain: Node MCU v3	Data: Madavi Temp/Humidity/Pressure Madavi Particle Sensor PM2.5/PM10
Sensor Luke	Lasercutter & 3D-Printing Lounge (orange housing)	6477466	10.10.20.32	SDS011 to measure the particulate BME280/BMP280 for the temperature/humidity OLED SSD1306 Software: sensor.community Data: send to tbd Case & Breakout Board: from HomeOfMaking Brain: Node MCU v3	Data: Madavi Temp/Humidity/Pressure Madavi Particle Sensor PM2.5/PM10
Sensor Charles	Community Area Front	9037909	10.10.20.33	BME280/BMP280 for the temperature/humidity OLED SSD1306 Software: sensor.community Data: send to tbd Case: sligthly adapted and hot glue fixed version of this Brain: Wemos D1 Mini	Data: Madavi Temp/Humidity/Pressure
Sensor Kim	Kitchen	9037703	10.10.20.34	BME280/BMP280 for the temperature/humidity OLED SSD1306 Software: sensor.community Data: send to tbd Case: sligthly adapted and hot glue fixed version of this Brain: Wemos D1 Mini	Data: Madavi Temp/Humidity/Pressure
Sensor Yuri	Top of workshop	3159041	10.10.20.35	BME280/BMP280 for the temperature/humidity Software: sensor.community Data: madavi, ... Case: sligthly adapted and hot glue fixed version of this Brain: Node MCU v2	Todo: Temporary on top of the workshop for temperatur tests. Later for the yard Calibration needed! Data: Madavi Temp/Humidity/Pressure

Challenges

• the BME280 sensor have a accuracy around +/-1°C. On the small temperatur/huminity sensors (e.g. Charles and Kim): Nevertheless, the ESP2866 is heating quite a lot inside the case. Therefore we needed to move out the sensor of the smaller housing and also added wholes to the 3D printed housing for better ventiliation in general for the micro controller On the dust sensors (Wendy and Luke), the situation is still not perfect.
• callibration was done with infrared thermometer and adjusted in the sensor community software

Pictures

Wendy: Workshop

Luke: Lasercutter

Luke: Lassercutter

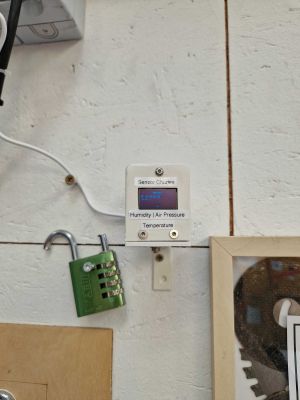

Charles: Community Area

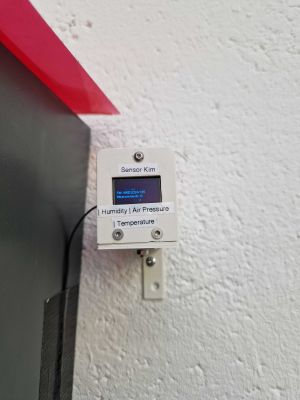

Sensor Kim

ToDos & Ideas

• Adjust Temperature Sensors => Done by Phier
• Fix BME280 Lasercutter and Workshop => Done by Milian
• Mount sensors again => Milian
• Send Data to Influx DB => Milian
• Integrate Sensors into new home-assistant setup => Milian & Adrian => open
• add new sensor for Community area (just humidity and temperature) => done
• improve sensors - better measurement result => in progress
• fix dust sensor in laser cube => in progress
• add new outdor dust sensor => in progress

Community Sensor

Related old projects: Pure Air-Rohr Sensors (compare page history), Archive:Airrohr Air-Rohr Sensors:

Sensor Community (Base project): https://sensor.community/en/sensors/airrohr

Makerlab version with PCB by HomeOfMaking: https://www.instagram.com/p/CUUc7UTtHhS/?utm_source=ig_web_copy_link&igsh=MzRlODBiNWFlZA==

Integrate Air-Rohr into Home Assistant: https://github.com/lichtteil/local_luftdaten

Background knowledge

Different BMP-280/BME-280 Sensor types:

https://homematic-forum.de/forum/viewtopic.php?t=68558

Differences BME-280 and BMP-280; Source: https://homematic-forum.de/forum/viewtopic.php?t=68558

https://www.jmargolin.com/newprojects/mytx4/difference_bme-280_bmp280.htm

BME-280 provides also humidity and BMP-280 does not have this feature.
